Machine Introduction:
SDSK3020WDL-BT40 is a 4-meter moving beam AC five axis gantry machining center specially designed for customers, with a fixed workbench.

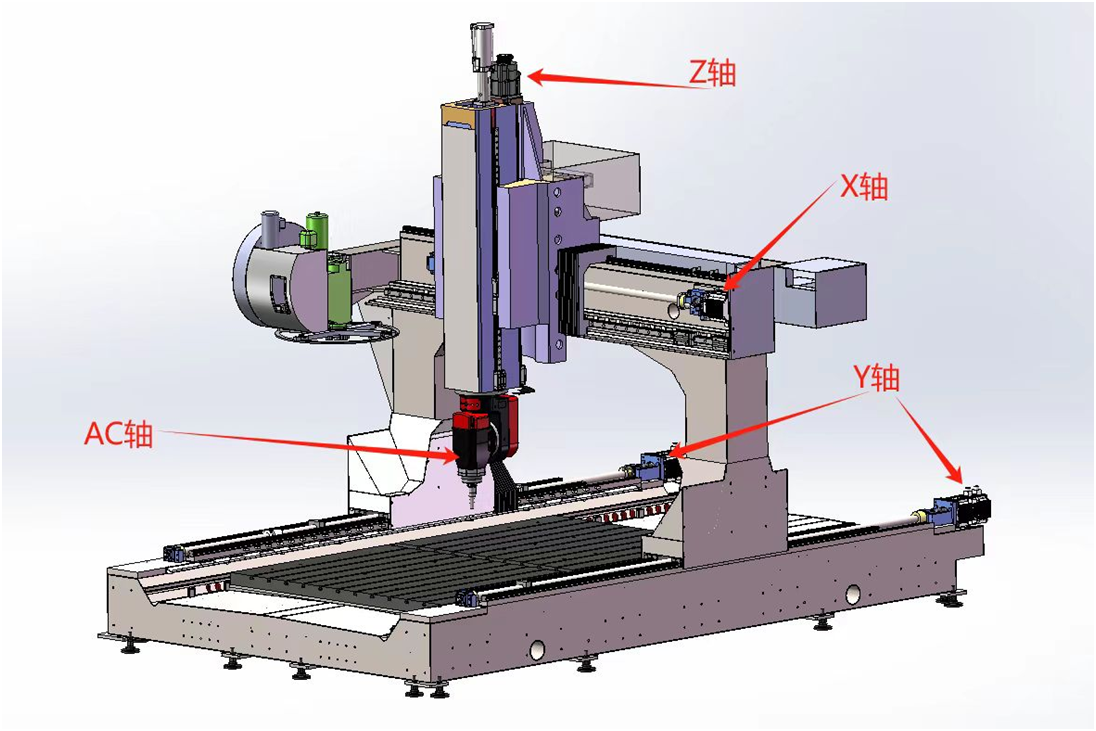

The motion mode is forward and backward movement of the Y-axis gantry, left and right movement of the X-axis machine head, up and down movement of the Z-axis spindle, and the A-axis can± 110· Rotation, C-axis can± 360· Rotate.
Equipped with RTCP tool tip following function, it can complete five axis linkage machining;
Especially suitable for precision 3D engraving, side milling, end milling, cutting, drilling, tapping and other processing of various types of steel, copper, aluminum, acrylic, plastic and other parts.

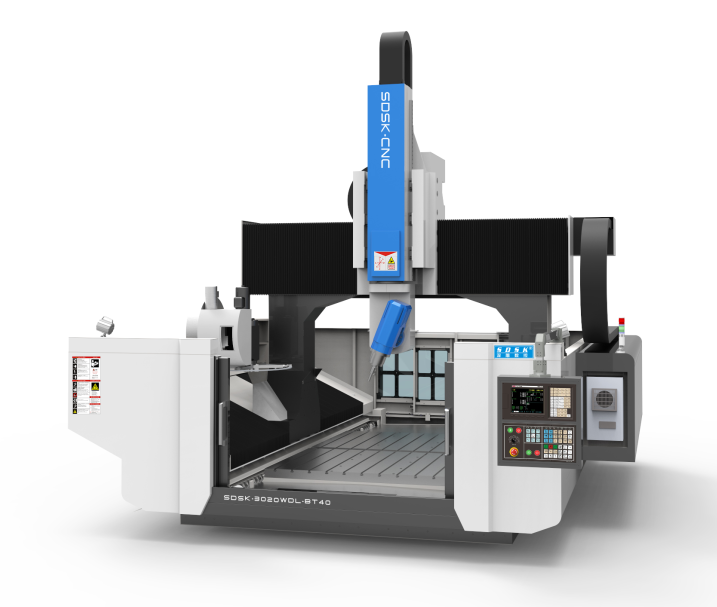

(The pictures are for reference only, subject to the actual product)



2、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
New generation system (22MA)/spindle servo drive 15-18000, with RTCP tool tip following function (optional)
full set
Taiwan
X-axis 6.9KW servo motor (new generation)
1 set
Taiwan
Y-axis 6.9KW servo motor (new generation)
2 sets
Taiwan
Z-axis 3.9KW servo motor with band brake (new generation)
1 set
Taiwan
Y-axis reducer, (or equivalent brand)
2 sets
Taiwan
AC axis swing head (with additional technical instructions)< Br/>
Including Big Joy Electric Spindle BT40-150-545-18000, 15KW, pneumatic tool change, with encoder;
1 set
Taiwan
Use Taiwan Shangyin/Intime for XYZ axis; Precision grade ball linear guide (X45-2, Y45-4, Z35-4), (or equivalent brand)
full set
Taiwan
Taiwan TBI for XZ axis; Precision grinding grade ball screw (XY50, Z40), (or equivalent brand)
1 set each
Taiwan
Equipped with a 24 position disc cutter magazine (Okada)
1 set
Taiwan
Steel composite bed body, mainly consisting of cast iron mechanical parts (HT300)
1 set
self-control
Distribution cabinet air conditioning constant temperature system (Reid)
1 set
Dongguan
Schneider Electrical Accessories (Schneider)
1 batch
Germany
Importing NSK/KOYO from Japan; P-grade angular contact paired bearings, (or equivalent brand)
full set
Japan
Spindle oil cooler (Red), (or equivalent brand)
1 unit
Dongguan
Electronic handwheel (Shenzhen Jingdiao)
1 set
self-control
Knife setting instrument (Shenzhen Jingdiao)
1 unit
self-control
XYZ axis with three proof cloth organ cover
1 set each
self-control
X/Y/Z axis plastic drag chain (Dingtai)
1 set each
Dongguan
Automatic lubrication oil pump (Proton)
1 set
Dongguan
Air filter (Japanese Lehman M107-A air filter)
1 set
Zhejiang
Water spray device
1 set
self-control
Water pump 750W (Snell), (or equivalent brand)
1 set
Changzhou
Air gun, water gun
1 each
Zhejiang
Machine tool accessories
1 set
Shenzhen
Knife handle/complete set of reducing nipples (three in one)
5
Shenzhen
Double screw+chain plate automatic slag discharge machine
1 set
self-control
Automatic double door (optional)
nothing
self-control


3、 Technical specification parameter table: (unit: mm)
model
SDSK3020WDL-BT40
Workbench size
X2000 * Y3000; (T-slot M16)
Dimensions from workbench to ground
Around 480
Gantry width
two thousand and three hundred
Spindle nose end to workbench
Maximum 700 to minimum 150
A-axis rotation angle 0· Time X-axis travel
two thousand
A-axis rotation angle 0· Time Y-axis travel
three thousand
Z-axis travel
seven hundred
A-axis rotation angle
&Plusmn; 110·
C-axis rotation angle
&Plusmn; 360·
A-axis± 90· Distance between the nose ends of the two main axes
X: 1230

Y: 2430
X/Y/Z fastest movement speed
X48 meters per minute

Y28 meters/minute

Z48 meters/minute
Maximum processing speed
12 meters per minute
servo system
AC servo
System resolution
zero point zero zero one
Three axis verticality
0.015mm
Whole machine positioning accuracy
&Plusmn; 0.05mm
Localization accuracy
Within 300± 0.01mm
Repetitive positioning accuracy
0.005mm
Number of spindles
1
Spindle power
15KW
Spindle torque
34.5N. m
Spindle speed
18000rpm/min
Disc type tool magazine
24 bit
Maximum tool length
200mm
Maximum tool diameter
80mm
Knife changing method
automatic
Clamping tool handle
BT40
Knife alignment method
automatic
The countertop bears a load
3000Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
About 45KW
Overall weight
About 18000kg
External dimensions (length * width * height)
Around 4300 * 7200 * 3800
5、 AC swing head parameter description:
Number
name
model
parameter
one
C-axis harmonic reducer
RD-100C
Speed ratio 11:1
two
A-axis gear indexing plate
250YB
Speed ratio 1:30
three
C-axis working range
&Nbsp;
&Plusmn; 360°
four
A-axis working range
&Nbsp;
&Plusmn; 115°
five
A-axis/rated maximum torque
&Nbsp;
1320Nm
six
C-axis/rated maximum torque
&Nbsp;
4900Nm
seven
A/C-axis servo motor power
1.8KW/1.8KW
&Nbsp;
eight
A/C axis accuracy
&Nbsp;
&Plusmn; 10 (SEC)/± 10 (SEC)
nine
Electric spindle power/torque
BT40-150-545-1800rpm
15KW/34.5Nm
ten
Knife cutting method
Pneumatic
Air pressure; 0.6 MPa
eleven
Total weight
&Nbsp;
About 90kg


5、 Standard configuration and accessories for the host:
one
Controller
eleven
1 mechanical, electrical, and operation manual
two
AC Swinging Head Assembly
twelve
Rigid tapping function
three
Automatic lubrication system
thirteen
Electrical box air conditioning
four
Adjustable foundation cushion block
fourteen
Operation Manual, Program Manual, and User Manual
five
Toolbox
fifteen
5 knife handles (including rivets and wrenches)
six
Work lights
sixteen
Lock blade holder
seven
Warning lights
seventeen
&Nbsp; M16 Ma Tie
eight
Spindle blowing device
eighteen
One 6-inch screwdriver
nine
transmission line
nineteen
Lock Mouth; ER25 (4-12)  1 set
ten
Semi enclosed cover
twenty
Shield


6、 Machine environment and hardware facility requirements;
Number
Environmental projects
Project Requirements Standards
one
Power requirements
AC380V (4P) 50-60Hz, air switch 100A, power supply voltage fluctuation range 380V± Within 10%
two
air compressor
Using screw compressor, air storage tank, three-stage filtration,≥ 0.55Mpa, flow rate≥ 100L/min
three
Vacuum pressure
&Ge; 0.6 MPa
four
Air dryer
Must have an air dryer with automatic drainage function
five
Environmental noise/vibration
&Le; 75dba
six
Ground requirements
The ground is required to be flat, stable, and the difference between the highest and lowest points should not exceed 5mm
seven
Environmental humidity
Suggest 45% -65%
eight
Gas moisture content
No moisture
